Understanding Plastic Injection Molding: A Comprehensive Guide

Introduction To Plastic Injection Molding

A common manufacturing method in a number of sectors, including the automobile, home appliance, and medical device industries, is plastic injection moulding. This process is widely recognised for its effectiveness in generating superior plastic components and holds a prominent position in the large-scale manufacturing of intricately shaped goods.

The Process Of Injection Molding

Injection molding involves a series of steps to create precise plastic components:

• Clamping – Securing the two halves of the mold.

• Injection – Introducing molten plastic into the mold cavity.

• Dwelling – Applying pressure to ensure all cavities are filled.

• Cooling – Allowing the plastic to solidify in the mold.

• Mold Opening – Separating the mold halves.

• Ejection – Removing the solidified part from the mold. This cycle repeats to allow for continuous production of parts.

This cycle is repeated, facilitating the mass production of plastic parts.

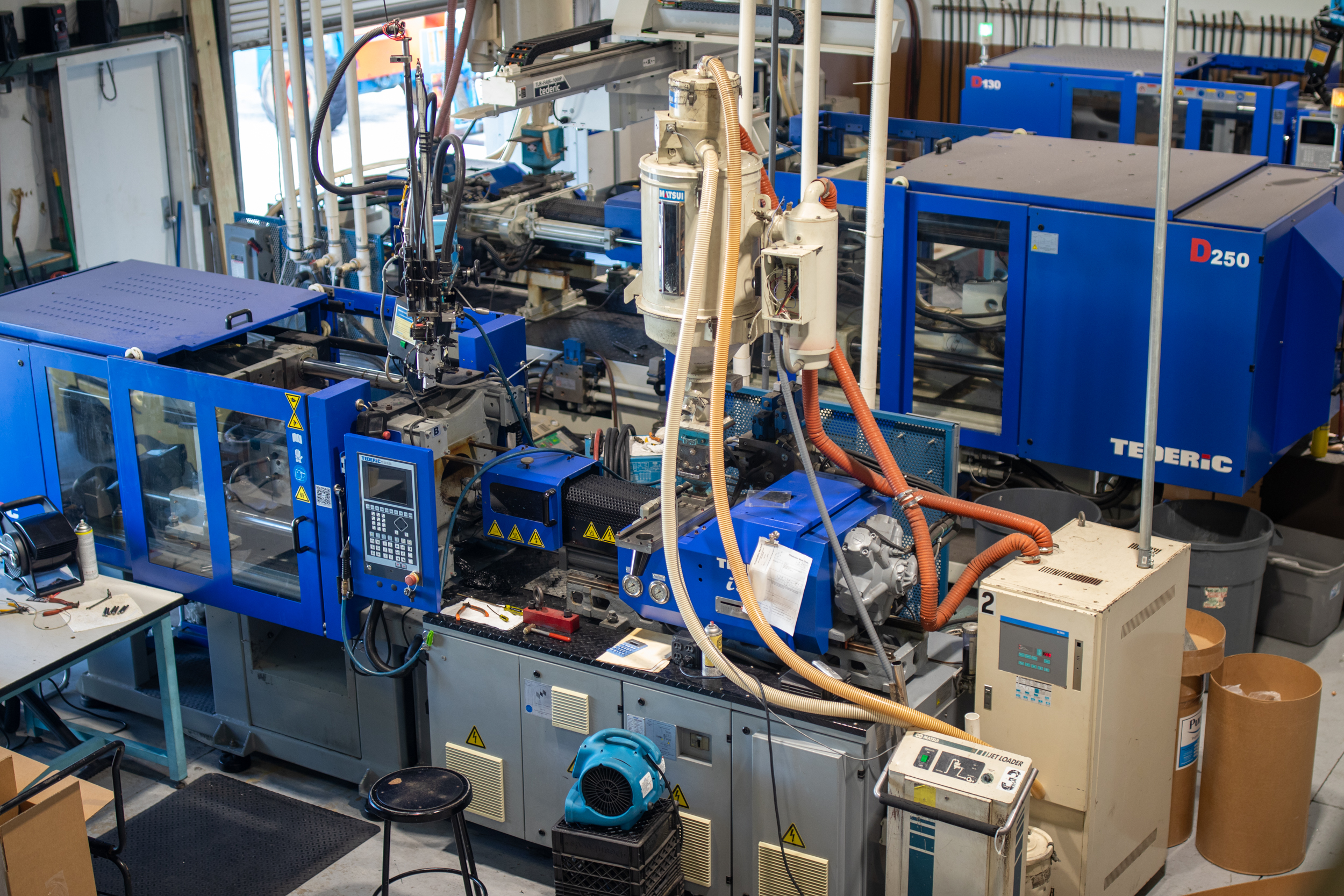

Injection Molding Machines: Hydraulic And Electric Variants

The clamping unit, which opens, closes, and ejects moulds, and the injection unit, which melts and injects plastic, are the two main components of these specialised machines. Hydraulic power or electric mechanisms are used to operate the machines; the electric versions use less energy.

• The Clamping Unit: This unit manages the mold's opening and closing as well as the final product's ejection. There are two types of clamping techniques: toggle and straight-hydraulic.

• The Injection Unit: in charge of melting plastic and injecting it into the mould. Melting plastic from the hopper, accumulating it, and regulating injection pressure and speed are important tasks.

Mold Design And Material Selection

Making the right thermoplastic selections and mould design are essential to the process. The mould is composed of two components: the core, which is typically made of aluminium or steel, and the cavity. Depending on the desired qualities of the finished product, thermoplastics like ABS, Nylon, Polycarbonate, and Polypropylene can be chosen. Prototype development and testing involve the use of cutting-edge technologies such as CAD and 3D printing.

Molds in injection molding are intricate metal blocks that shape the molten plastic. Key elements include:

• Temperature Control: Through holes for water, oil, or heater circulation.

• Flow Pathways: Sprues, runners, and gates that guide molten plastic into the cavities.

• Ejection System: Ejector rods and plates for part removal.

Advantages Of Injection Molding

Injection molding stands out for its:

• Flexibility: Ability to produce a wide range of components.

• Efficiency: Capability to produce thousands of items per hour.

• Consistency: High quality and uniformity in mass production.

• Cost-Effectiveness: Reduced per-component cost in large-scale production.

• Quality: Ability to manufacture strong, detailed, and stable components.


Steps In The Injection Molding Process

• Feeding and Melting the Thermoplastic: The pellets of thermoplastic are put into a barrel that is heated and melts them.

• Injecting the Plastic into the Mold: Under exact pressure, the molten plastic is injected into the closed mould.

• Holding and Cooling: After the material is compressed, it is allowed to cool and solidify.

• Ejection and Finishing: After the last component is ejected, any remaining finishing steps are finished.

Molding And Its Efficiency

The finished product, runner, and sprue make up the mouldings. In order to produce multiple parts per cycle, efficient mould design frequently consists of multiple cavities connected by runners, with careful design ensuring uniform quality across all cavities.

Reprocessing And Molding Conditions

To preserve quality, recycled materials—typically made up of runners and sprues—may be combined with new plastic up to a maximum of 30%. Achieving the appropriate product quality depends on the moulding parameters, such as temperature and injection speed.

Tailoring Molding Conditions

Important moulding parameters include cylinder temperature, injection speed, and mould temperature. These parameters need to be carefully chosen, requiring specialised knowledge and experience, based on the material and intended product characteristics.

Delaney Manufacturing And Its Injection Molding Process

As a pioneer in injection moulding, Delaney Manufacturing provides millions of high-quality parts manufacturing experience along with an extensive selection of moulds. We offer all-inclusive solutions, such as mould creation, process parameter setting, and the delivery of specially made plastic parts.
